#99 • Grizzly G0602 - 10" x 22" Benchtop Metal Lathe

Part of Orange Gallery - Unique Estate Items, Beautiful Glassware, Swarovski, Case Knives, Books (timed auction by K and B Auction)

Starting at $1.00

Status: Available

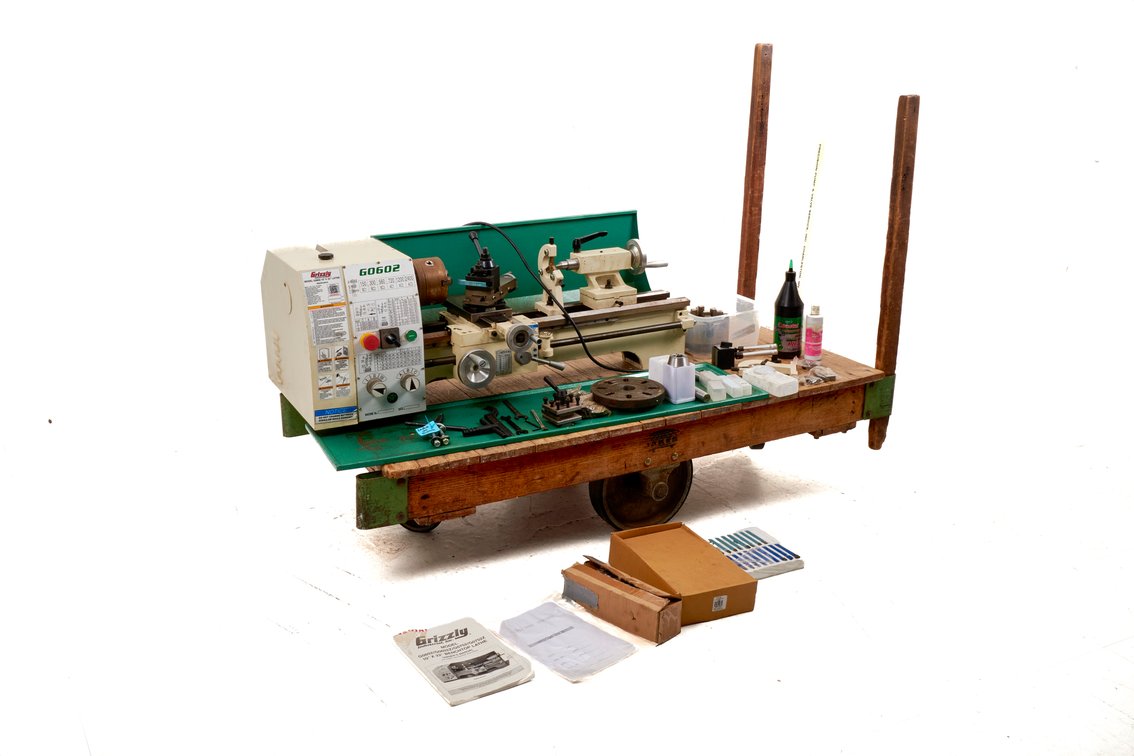

Grizzly- 10" x 22" Benchtop Metal Lathe- model G0602. Lathe is used- tested and powers on and spins- not tested for full function. Comes with parts, oil and more. 330 lbs. SPECIFICATIONS: Motor: 1 HP, 110V, single-phase, 13.6A Swing over bed: 9-1/2" Swing over cross slide: 6-1/8" Swing over saddle: 6-1/8" Distance between centers: 22" Bed width: 6-1/8" Spindle bore: 25mm Spindle speeds: 6, 150–2400 RPM Spindle type: Threaded, 1-3/4" x 8 TPI Spindle taper: MT#4 Tailstock taper: MT#3 Tailstock quill travel: 2-1/2" Cross slide travel: 6-1/2" Compound travel: 3-1/2" Maximum tool bit size: 1/2" Leadscrew: 3/4" x 12 TPI Longitudinal feeds: (9) 0.0025, 0.0140 in./rev. Inch thread range: (31) 8–72 TPI Metric thread range: (26) 0.25–3.50mm Footprint: 47-1/2" x 12-1/2" Overall dimensions: 46" W x 22" D x 16-5/8" H BP
